RIFLE Plate system

Modular Ballistic Defense Featuring Dual Strike-Face Technology for All Day Rifle Protection

INQUIRE NOW

PRODUCT FEATURES

GROUNDBREAKING

  • Thinnest, lightest, certified plate system on the market
  • Patented, magnetic and modular SNAP system
  • Proprietary, multi-curve design with a refined aesthetic finish

SUPERIOR SAFETY

  • Certified to NIJ 0101.06 Standard (Level III) – designed to be worn in conjunction with RISE Armor packages or other soft body armor vests
  • Advanced handgun, rifle, stab and special threat protection exceed NIJ standards
  • Multi-round capable plates with dual-strike face design

SCALABLE

  • SNAP the 855 Strike Face Plate for tiered rifle and handgun – armor up or down
  • Base Plate selections scale in weight, thickness and price
  • Available in a variety of cuts and sizes
INQUIRE NOW

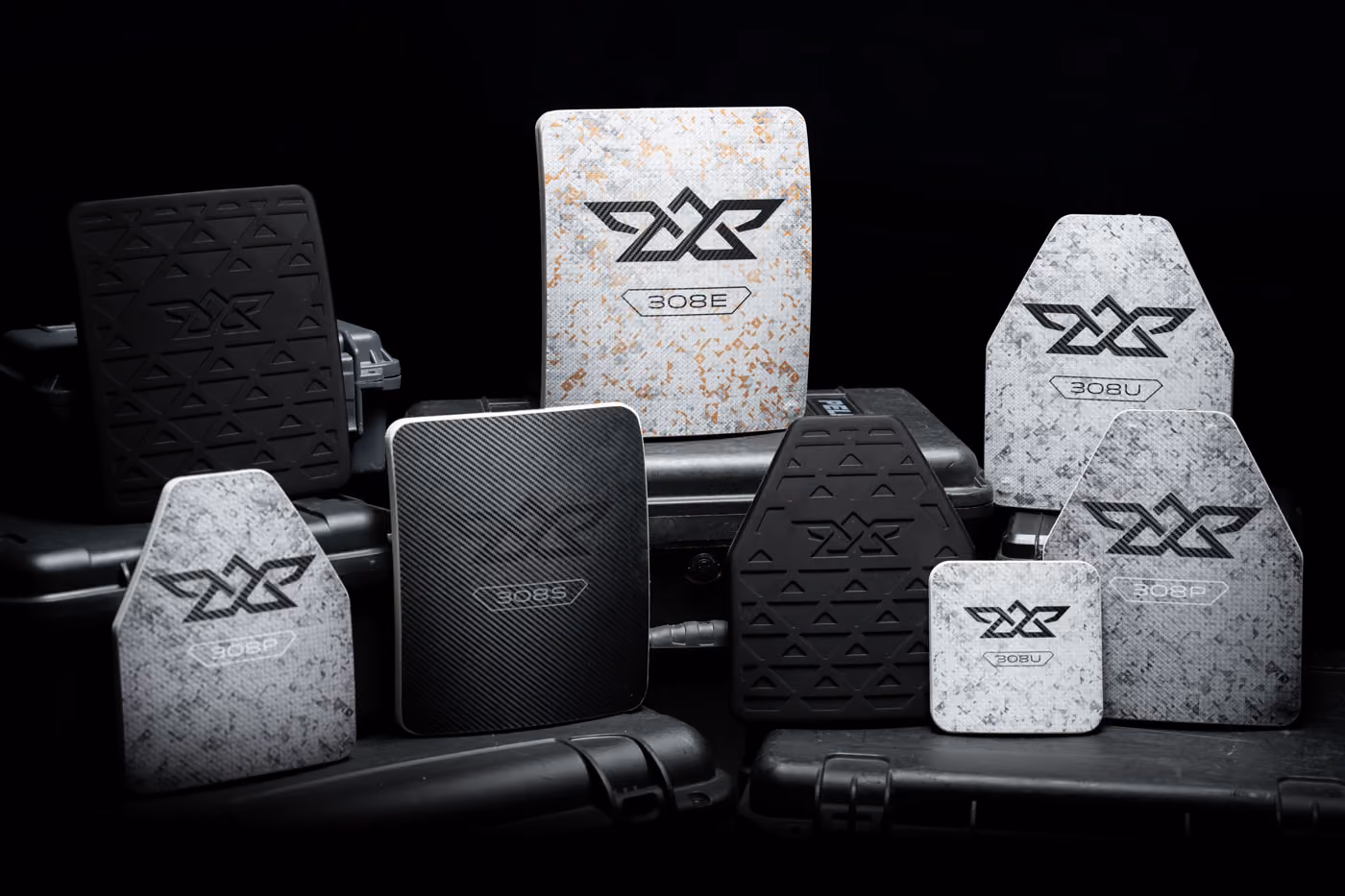

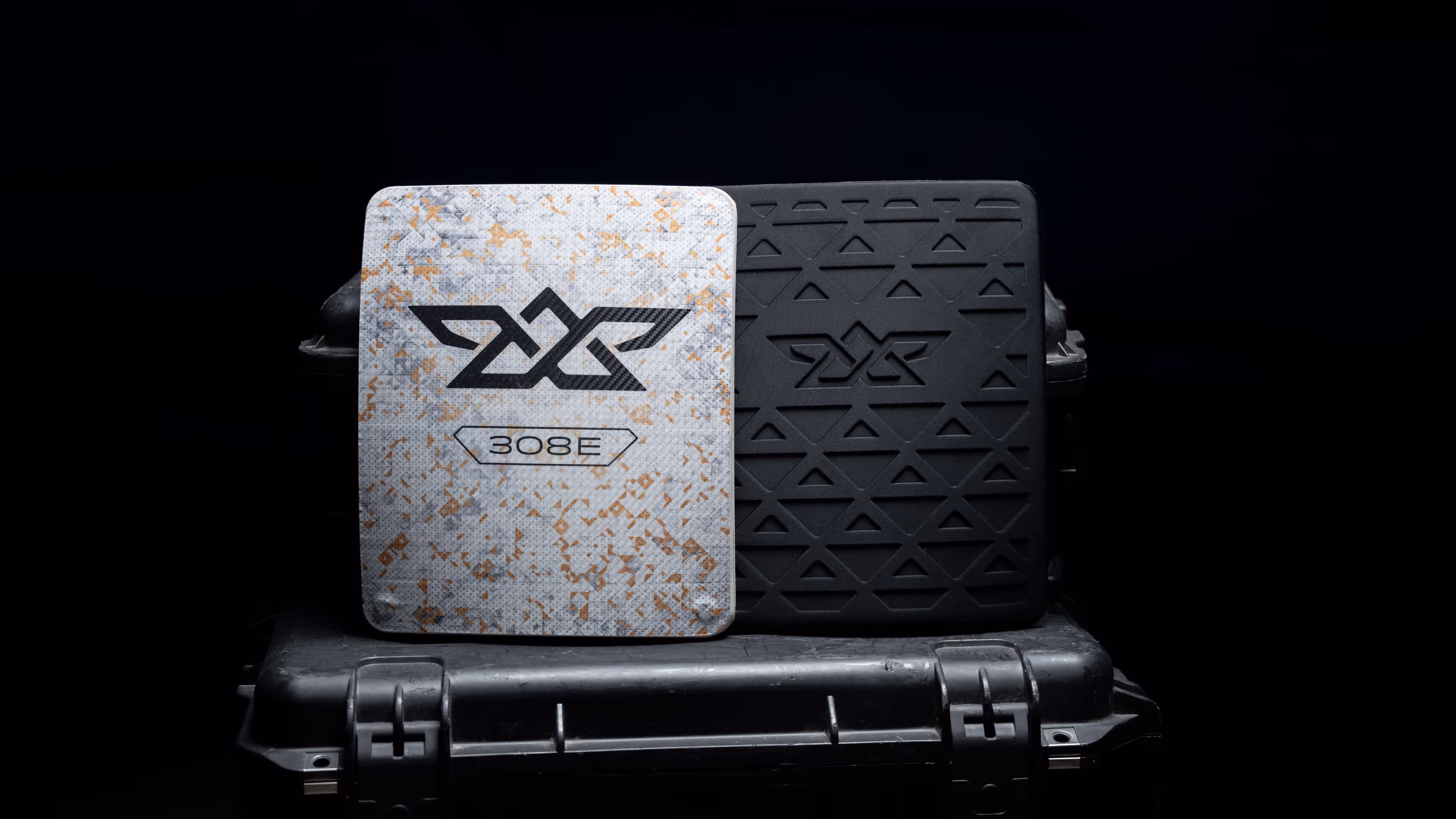

PRODUCT IMAGES

PERFORMANCE & SPECS

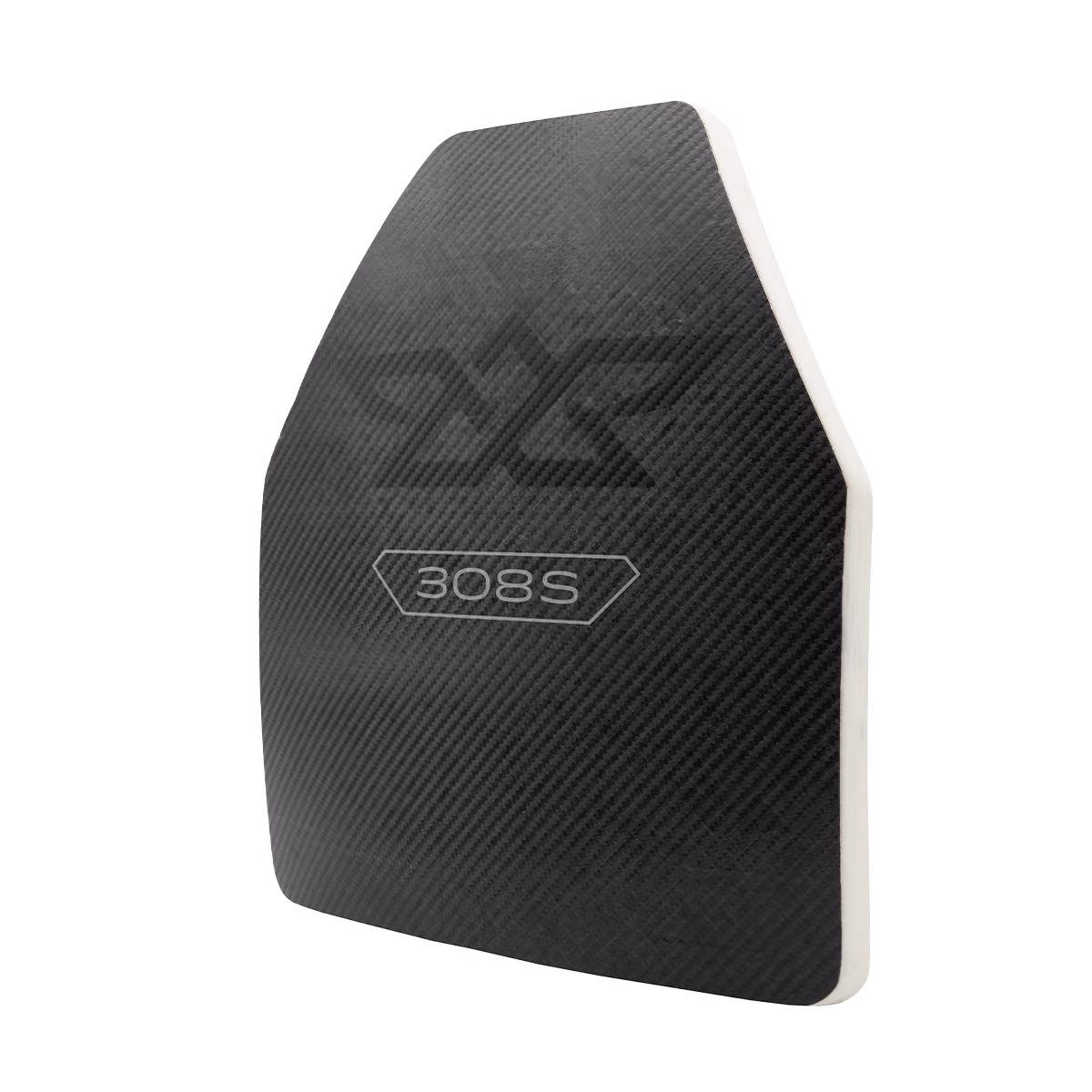

308 STANDARD

CERTIFIED TO NIJ STANDARD 0101.06 (LEVEL III) WHEN WORN IN CONJUNCTION WITH RISE LEVEL IIIA ULTRA PREMIUM ARMOR PACKAGE*

CPL Model Designation: AAS302 ICW, RISE, Ultra, Premium, Male IIIA

SPECIAL THREAT PROTECTION

Tested to NIJ 0101.07 standard when worn in conjunction with RISE Level II or LEVEL IIIA Armor Packages:

7.62x51mm M80 Ball NATO FMJ Steel Jacket @ 2780 fps (847 m/s)

7.62x39mm MSC Type 56 @ 2400 fps (732 m/s)

5.56mm M193 @3250 fps (990 m/s)

ICW 855 Strike Face Plate: 5.56mm M855 @ 3115 fps (950 m/s)

MEETS NIJ STANDARD 0115.00 STAB RESISTANCE SPIKE LEVEL 3

* Independently tested in accordance with NIJ standards. Full test details and reports available upon request.

** 5×8″ and 6×6″ plates are tested to NIJ Standards

THICKNESS
0.70″ • 17.8mm

AREAL DENSITY
3.46 lb/ft2 •  1.69 kg/m2

SIZES AND WEIGHTS
5 x 8″ Full Cut**
0.96 lb • 0.44 kg

7 x 9″ Full Cut
1.52 lb • 0.69 kg

8 x 10″ Shooter’s Cut
1.67 lb • 0.76 kg

8 x 10″ Full Cut
1.94 lb • 0.88 kg

9 x 11″ Shooter’s Cut
2.10 lb • 0.95 kg

9 x 11″ Full Cut
2.41 lb • 1.09 kg

10 x 12″ Shooter’s Cut
2.58 lb • 1.17 kg

10 x 12″ Full Cut
2.94 lb • 1.33 kg

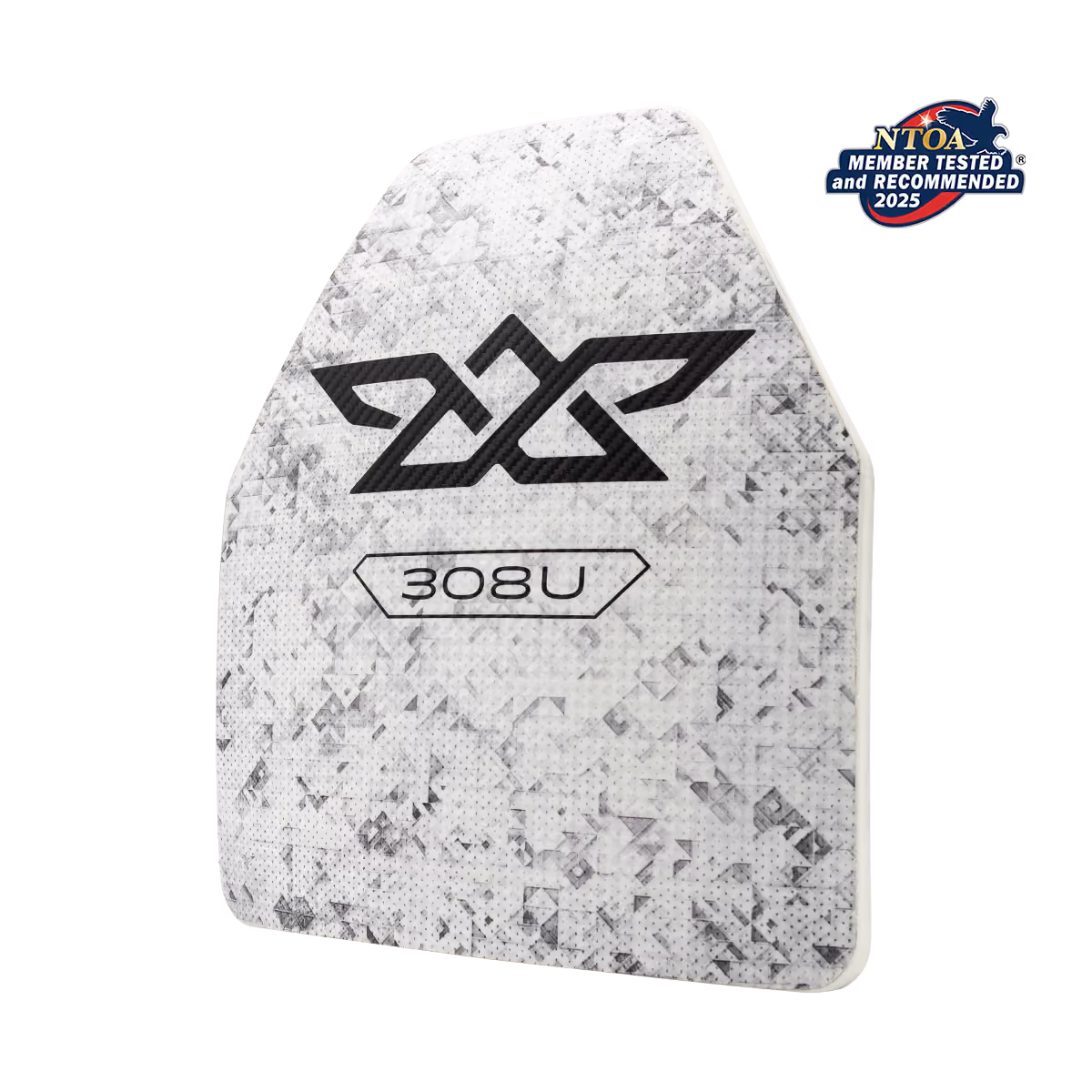

308 ULTRA

CERTIFIED TO NIJ STANDARD 0101.06 (LEVEL III) WHEN WORN IN CONJUNCTION WITH RISE LEVEL IIIA ULTRA PREMIUM ARMOR PACKAGE*

CPL Model Designation: AAU301 ICW, RISE, Ultra, Premium, Male IIIA

SPECIAL THREAT PROTECTION

Tested to NIJ 0101.07 standard when worn in conjunction with RISE Level II or LEVEL IIIA Armor Packages:

7.62x51mm M80 Ball NATO FMJ Steel Jacket @ 2780 fps (847 m/s)

7.62x39mm MSC Type 56 @ 2400 fps (732 m/s)

5.56mm M193 @3250 fps (990 m/s)

ICW 855 Strike Face Plate: 5.56mm M855 @ 3115 fps (950 m/s)

MEETS NIJ STANDARD 0115.00 STAB RESISTANCE SPIKE LEVEL 3

* Independently tested in accordance with NIJ standards. Full test details and reports available upon request.

** 5×8″ and 6×6″ plates are tested to NIJ Standards

THICKNESS
0.53″ • 13.5mm

AREAL DENSITY
2.60 lb/ft2 •  1.18 kg/m2

SIZES AND WEIGHTS
5 x 8″ Full Cut**
0.72 lb • 0.33 kg

7 x 9″ Full Cut
1.14 lb • 0.52 kg

8 x 10″ Shooter’s Cut
1.26 lb • 0.57 kg

8 x 10″ Full Cut
1.46 lb • 0.66 kg

9 x 11″ Shooter’s Cut
1.58 lb • 0.72 kg

9 x 11″ Full Cut
1.81 lb • 0.82 kg

10 x 12″ Shooter’s Cut
1.94 lb • 0.88 kg

10 x 12″ Full Cut
2.21 lb • 1.00 kg

855

CERTIFIED TO NIJ STANDARD 0101.06 (LEVEL III) WHEN WORN IN CONJUNCTION WITH RISE ARMOR PACKAGES AND TRUTH SNAP BASE PLATES*

7.62x51mm M80 Ball NATO FMJ Steel Jacket @ 2780 fps (847 m/s)

SPECIAL THREAT PROTECTION

Tested to NIJ 0101.07 standard when worn in conjunction with RISE Armor Packages and Truth SNAP Base Plates:

5.56mm M855 @ 3115 fps (950 m/s)

* Independently tested in accordance with NIJ standards. Full test details and reports available upon request.

855 Strike Face must be worn with ICW Truth SNAP Base Plates

SNAP THE 855 STRIKE FACE PLATE TO ANY TRUTH SNAP BASE PLATE FOR M855 PROTECTION

THICKNESS
0.45″ •  11.43mm

AREAL DENSITY
2.56 lb/ft2 •  1.25 kg/m2

SIZES AND WEIGHTS

7 x 9″ Full Cut – 1.39 lb • 0.63 kg

8 x 10″ Shooter’s Cut  – 1.53 lb • 0.69 kg

8 x 10″ Full Cut  – 1.77 lb • 0.80 kg

9 x 11″ Shooter’s Cut – 1.89 lb • 0.86 kg

9 x 11″ Full Cut – 2.18 lb • 0.99 kg

10 x 12″ Shooter’s Cut – 2.35 lb • 1.07 kg

10 x 12″ Full Cut – 2.69 lb • 1.22 kg

INQUIRE NOW OR GRAB THE SALES SHEET

Frequently Asked Questions

To get the most out of your rifle plates, proper care and storage are critical.

Storage at room temperatures in your locker or closet is recommended.

Your body armor should never be stored in the trunk of a vehicle where it may be exposed to temperatures in excess of 150 degrees F. High temperatures may affect the strength of some materials which could diminish the performance of your body armor.

If needed, use a dry microfiber cloth and water to wipe your plates. Don’t ever fully submerge the rifle plates in water or use soaps or solvents. Always dry before returning the rifle plates them to your carriers plate pocket.

Our standard lead time for Truth SNAP Rifle Plates is 25 buisness days from date-of-order. However, lead times may vary based on the size and details of your order. For a more specific date range based on the product you’re interested in, contact us at sales@angelarmor.com.

Our Truth SNAP Rifle Plates are backed by a 60-month limited warranty against manufacturer defects. For further information, visit our Warranty page.

All Truth SNAP Rifle Plate sales are final unless the item is returned in its original packaging, safety seal unbroken. Opened items cannot be returned as Angel Armor cannot guarantee the structural integrity of the product has been maintained.

At this time, we serve our First Responder and Military heroes, including Public Safety, Law Enforcement, EMS, Fire and Private Security clientele. If you have a unique need or specific business opportunity that warrants consideration, please contact us at sales@angelarmor.com.

You may contact us for more information and/or to start the process of placing an order by submitting the Inquiry Now form on this website or emailing us directly at sales@angelarmor.com.
